Ealing High Street

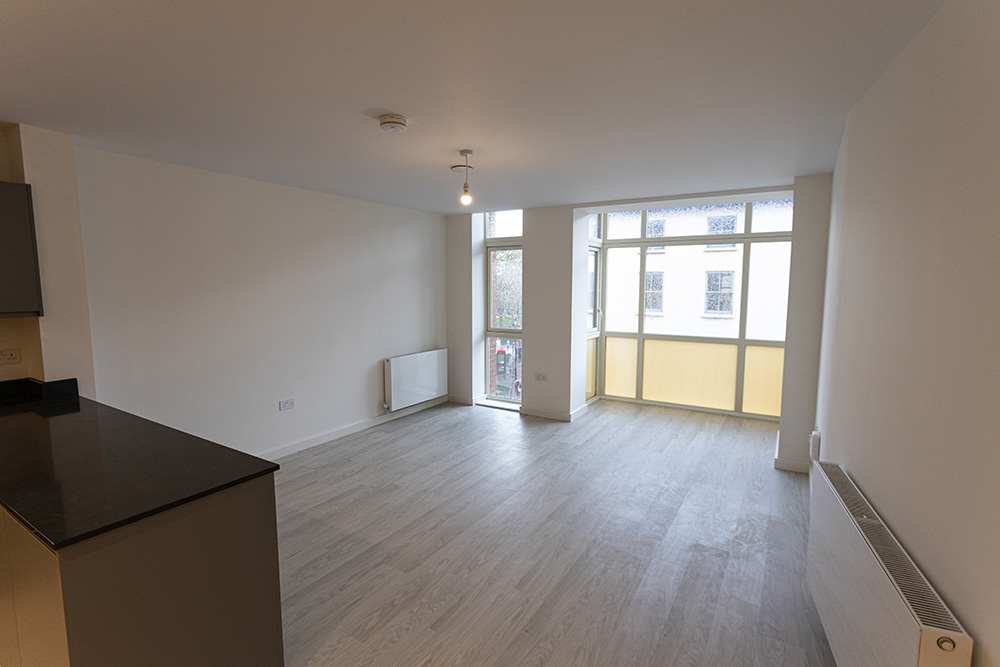

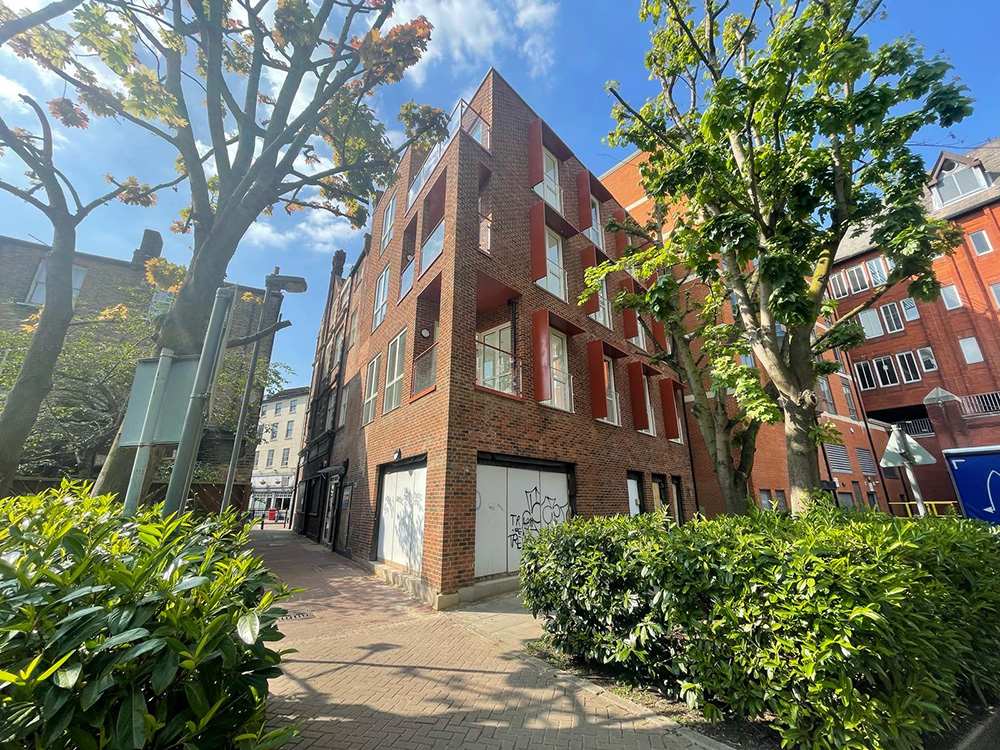

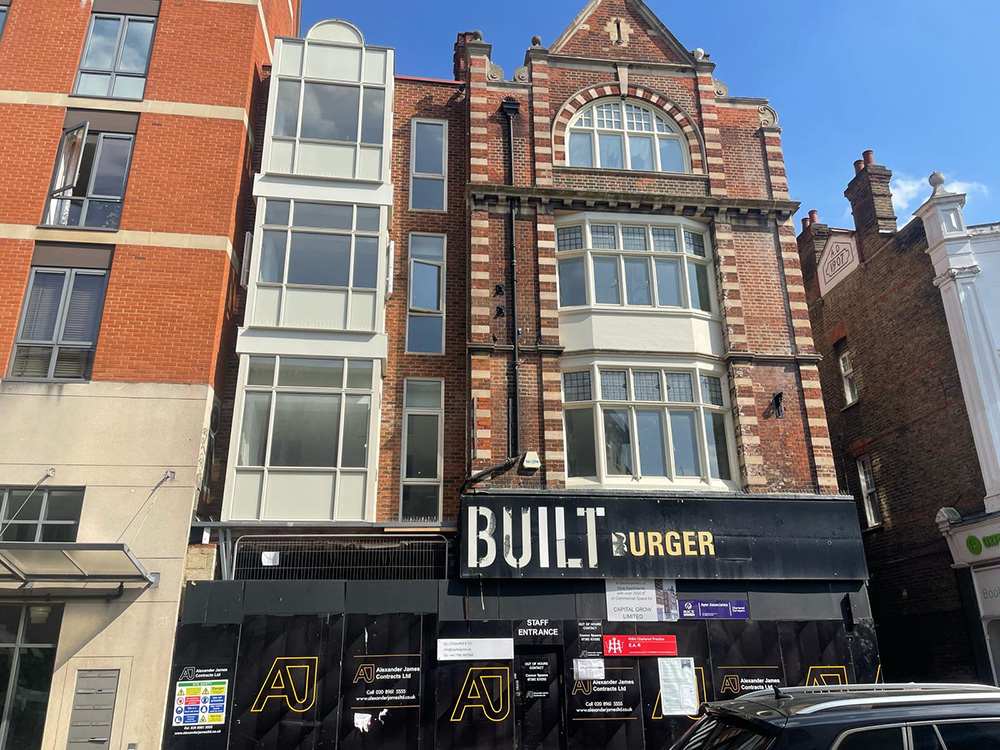

A residential project, based on Ealing High Street, converting the existing building into 10 council apartments. This project was complex, with a full refurbishment to the original building, new flat roof construction and internal elevator installation.

Every floor was stripped down to bare timber/ re-joisted and 18mm ply was also reinstalled. The main roof was stripped and supported with new rafters and ridge beam; whilst cutting out a clear 3mx3m opening for the newly built elevator shaft. The adjacent flat roof was rebuilt with 6’2 furring’s, box gutters and 18mm ply. This timber roof was covered in 200mm insulation creating a warm insulated roof for the building below. The project also requires us to form 8 external balconies, repair the existing windows of the property and complete all the 2^nd fix carpentry.

Location: Ealing high street, West London, W55DB

Description: 10 Flats

Contract Type: 1^st fix – supply & fit                  2^nd fix – Labour only

Contract Value: £57,200

1st fix carpentry

• Construction of main flat roof – furring’s/ply/box gutters and insulation
• Re-joisting ever floor with 8’2 timber and 18mm ply
• Reinforce existing pitched roof with new rafters and ridge beam
• Remove 3mx3m opening in pitch roof for elevator shaft
• Installation of staircases and half landings
• Installation of window boards

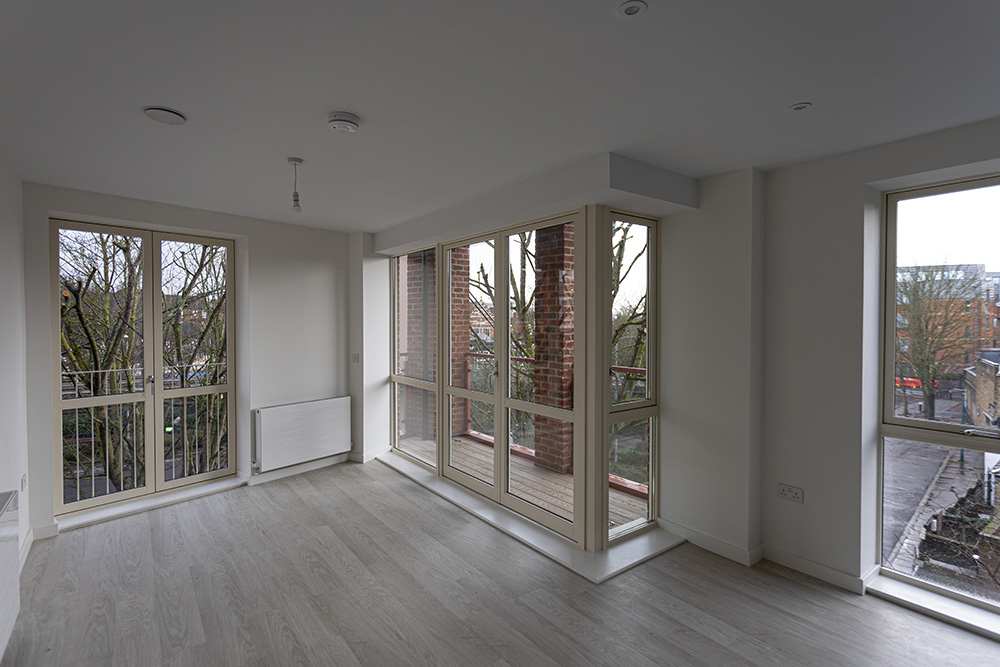

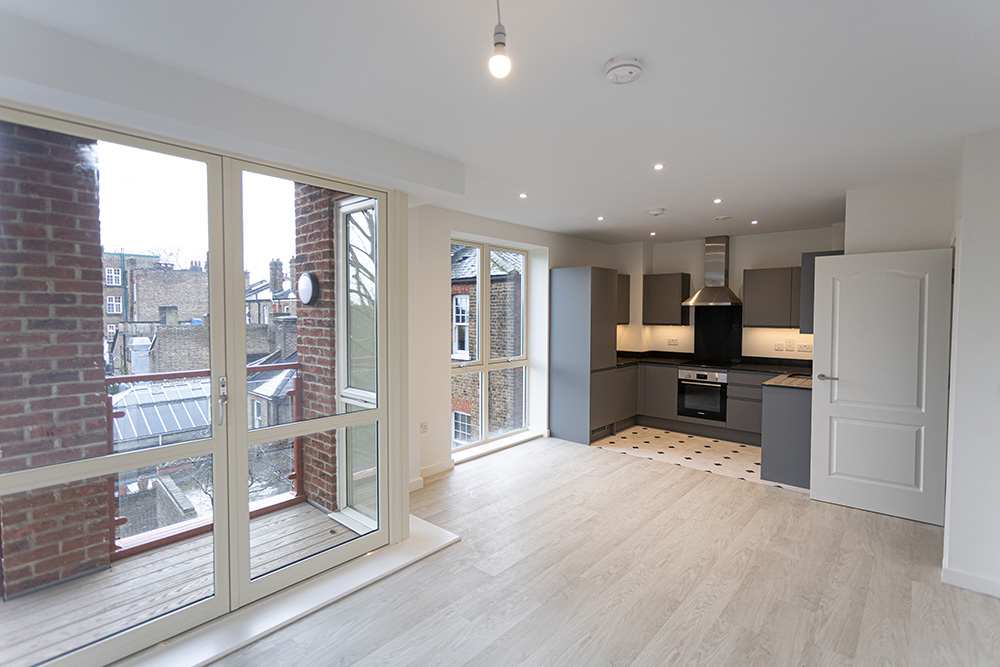

• Forming balcony’s – Joisting/furring’s/ply/timber decking & pedestals

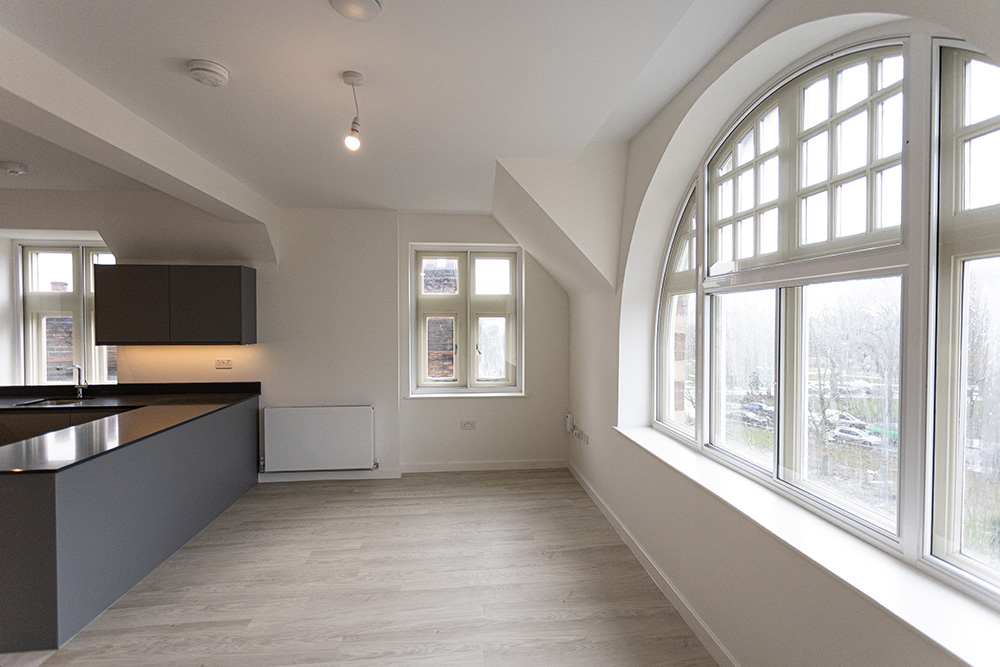

• Repairs to existing windows

2nd fix carpentry

• Internal FD30 door sets (including ironmongery)
• Skirting and architrave

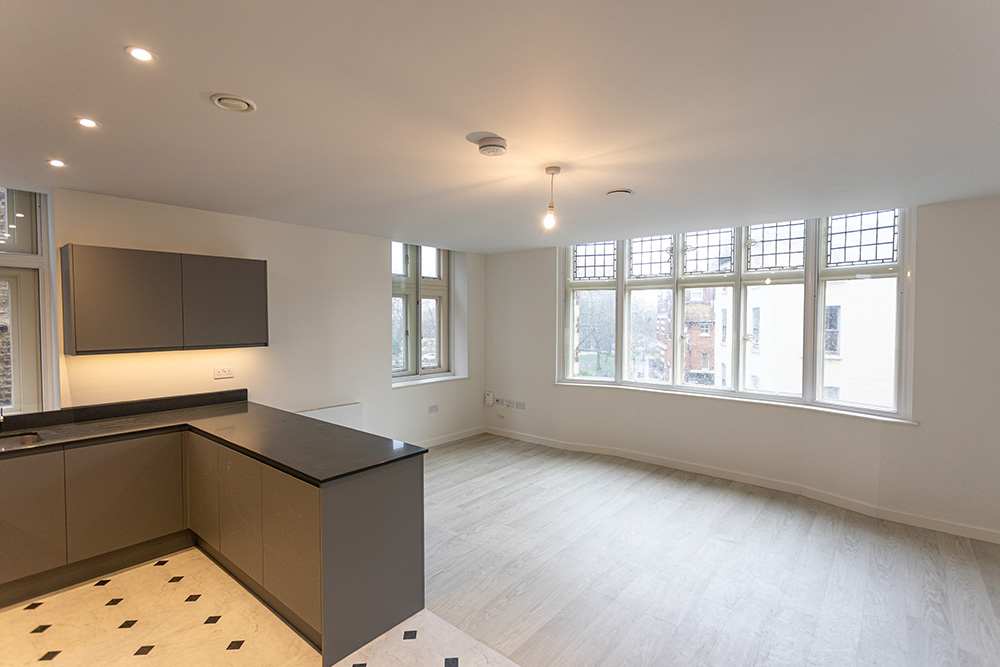

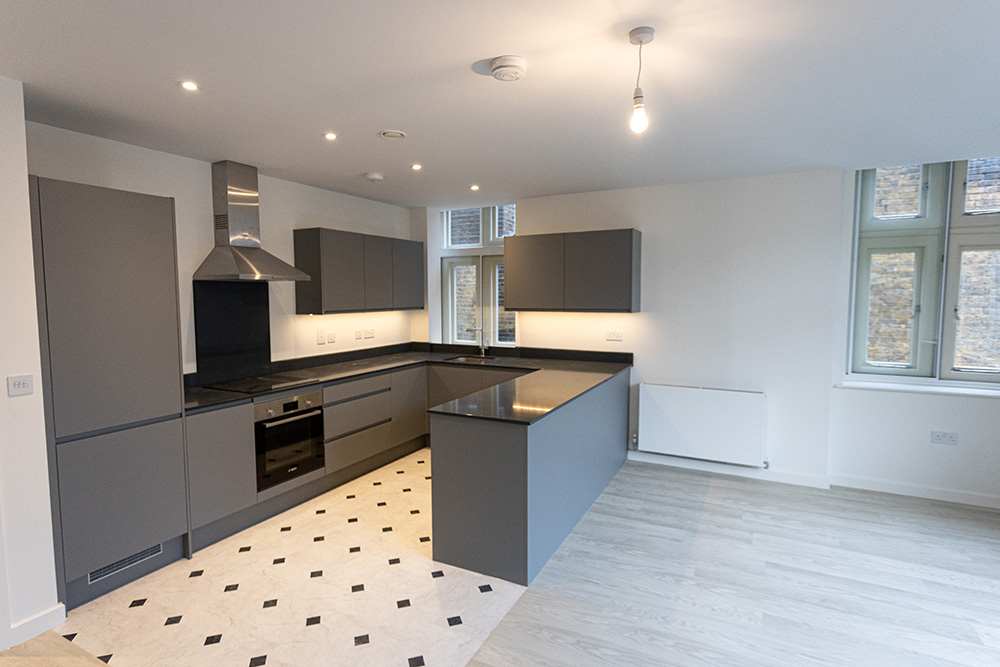

• Kitchen installation
• Flooring

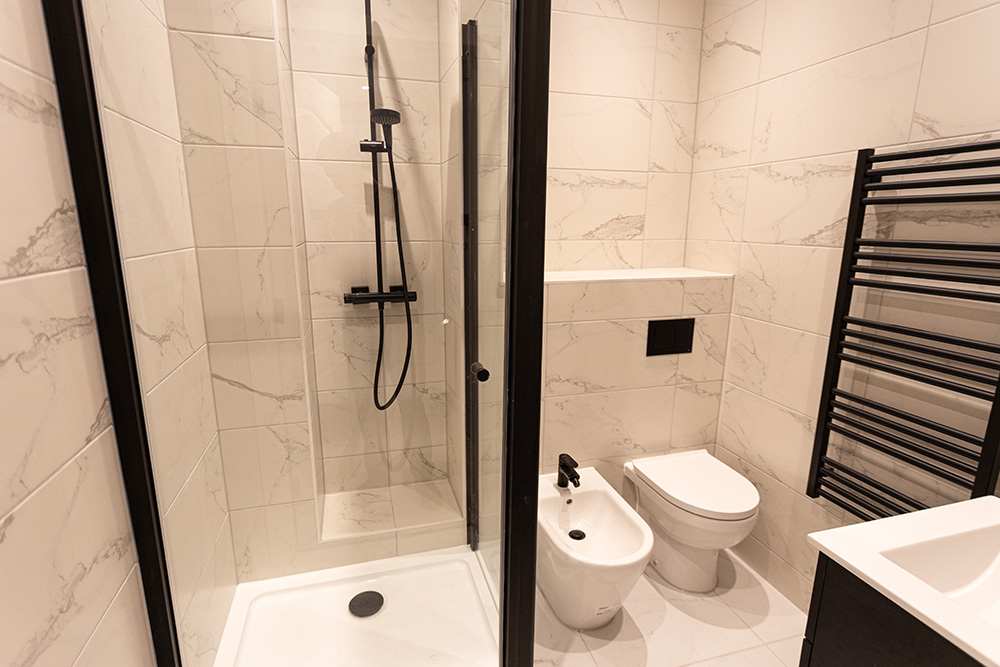

• Final finishes (Mirrors, bathroom accessories, door stops, shelves etc)
